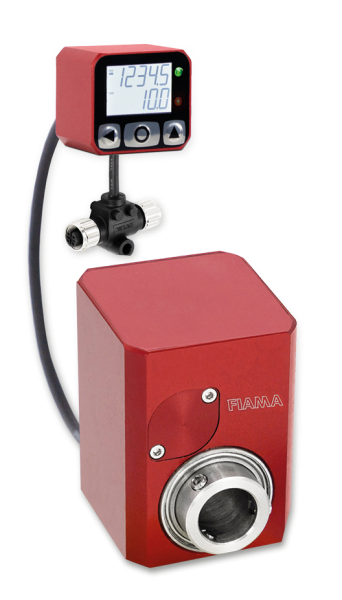

Product information "F46RS EM46 Position indicator - electric digital"



  • Programmable electronic position indicator with through hollow shaft and fieldbus interface for accurate adjustment control of spindles.
  • Evolution of mechanical indicators, with comparable dimensions and the same mounting system, for semi-automaticadjustment monitored by PLC on a vast range of machines and plants even in complex and heterogenous working conditions.
  • LCD with two rows with backlight for target-and actual value.
  • Suitable for semi-automatic and monitored adjustmentsof spindles.
  • Freelyprogrammable via keyboard operation with RS485 Modbus interface.
  • RS485 Modbus for network connection with PLC or remote monitoring system.
  • Allowing manual format changeover by the operator using a hand crank or hand wheel.
  • User guidance via 2 signal LEDs(green/red) to indicate: position has been reached / not reached.
  • Fieldbus connection via gateway interface: Profinet, Ethernet/IP and Powerlink.
  • Battery lifetime: 6 to 8 years.
  • Extensive accessories available: shaftclampingflange, reducingbushes, handcrank or hand wheel





Related links to "F46RS EM46 Position indicator - electric digital"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "F46RS EM46 Position indicator - electric digital"



Mechanical Characteristics

Weight

150 g (indicator only)

Display

LCD with backlight, 2-rows, digit height 7,5 mm

First row: target value; second row: actual value

Indicating range

-99999; +99999

Speed

Max. 1.000 revolutions / min.

Sensor cable

PUR-cable, Ø5,5 mm – pre-wired, not detachable

for mobile laying in cable chains; cable length: 0.5, 1, 3, 5 or 10 meters

Operating temperature

0°C to +50°C

Relative humidity

35% to 85% (no condense)

Protection rating

Display: IP54 - sensor: IP67

Connection type

T-connector, 4-pole plug + 4-pole socket M12x1 (A-coded)

Y-connector, 4-pole socket 2x M12x1 (A-coded), optional

Power supply

Cable length 135 mm (with T-connector)

Cable length 200 mm (with Y-connector)



Electrical Data

Power supply

10-30 VDC, max. 100 mA

Battery

3,6 V- 1/2 AA, lifetime 6-8 years

Available functions

Reset, absolute/ incremental value,

mm/ inch-conversion, offset

Keyboard

Frontal keyboard – 3 programming- and function keys

Serial port

RS485 – MODBUS RTU

Electromagnetic compatibility (EMC)

2014/30/UE

RoHS

2011/65/UE
