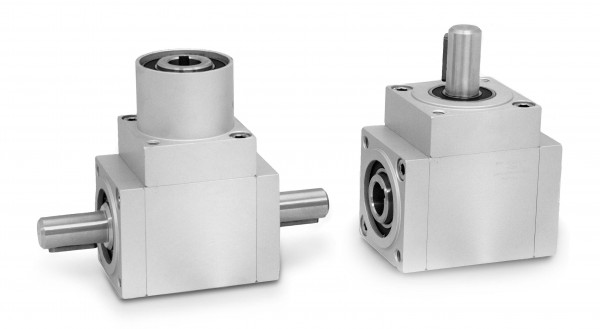

Gearbox 66/8



Torque 90 Nm
Gearing

Straight gearing,

Spiral-shaped gearing

Ratio  1:2, 1:1, 2:1
Dimension  95 x 70 x 95 mm
Axial-/ radial load  1.500 N / 150 N



Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:

Any questions?

Christian_Willmann

Your Contact

Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17




Download brochure

  • 66-8
Angular gearboxes with bevel and spiral bevel gears are suitable for transmitting the rotary... more
Product information "Gearbox 66/8"
Angular gearboxes with bevel and spiral bevel gears are suitable for transmitting the rotary motion between two shafts at right angles.

  • Ratio 1:1, 1:2, 2:1
  • Die-cast aluminium housing, anodized natural, black anodized or stainless steel
  • Straight gearing or spiral-shaped gearing
  • Ball-bearings, hardened bevel gears
  • minimal angular and axial clearance
  • tolerance between gears from 0.1° to 0.75°
Related links to "Gearbox 66/8"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Gearbox 66/8"



Measurements
     Diameter
          Hollow-, solid-shaft
     Length
          Hollow-shaft
          Solid-shaft
overall, see data sheet

Ø20 mm*

42 mm effective length, 42,5 mm construction depth*
40 mm*
Material
     Hollow-, Solid-shaft
     Housing

     Bearing

Solid steel (AISI 303)
Die-cast aluminium housing, anodized natural (standard),
black anodized or stainless steel (AISI 303)
Ball bearing, hardened bevel gears
Weight

2500 g     with 2 outputs

2700 g     with 3 outputs

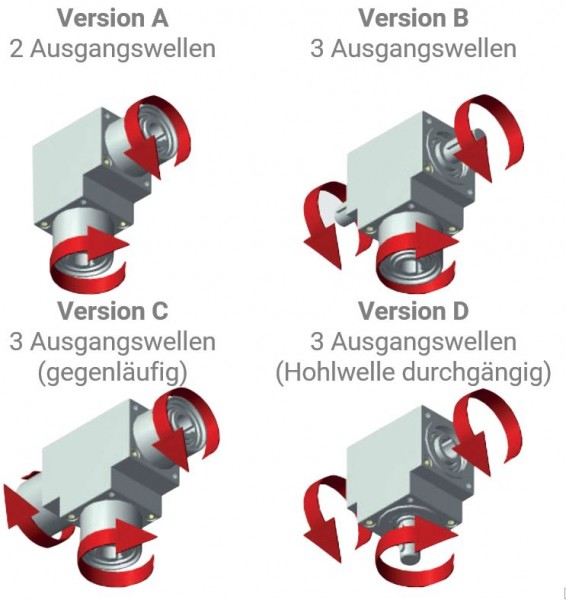

Version

     A

     B

     C

     D



2 output shafts

3 output shafts

3 output shafts (with opposite rotation)

3 output shafts (through hollow shaft)

Ratio 1:1    1    (standard)
1:2    2    in reducing (standard)
2:1    0,5    in multiplying (not available in version D)
Torque 90 Nm
Shaft Load radial 150 kg
axial 15 kg
Bevel gears
     Straight bevel gears
     Spiral bevel gears

Straight gearing
Spiral gearing
Gear Tolerance 0.1° to 0.75°
Greasing grease fitting for continous use

*more versions on request



66-8_Drehmoment_EN





Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Gearbox 66/8"



66-8-A-V-V_Zeichnung

*For measurements of other versions please see our data sheet or CAD model
