Mechanical meter counter M45
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
- Order number: MZM-M45
Hoses, tapes, cables - mechanical meter counters from Willtec measurement... more
Product information "Mechanical meter counter M45"
Hoses, tapes, cables - mechanical meter counters from Willtec measurement technology provide the user with a simple and cost-effective way to measure the length of continuous materials.
Related links to "Mechanical meter counter M45"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Mechanical meter counter M45"
Mechanical data
| Material (Housing) | Plastic, fibreglass hardened, water proof |
| Weight | Ca. 130 g (w/o accessory) |
| Shaft diameter | d=5 mm |
| Torque | Ca. 100 Ncm |
| Display | 5 digits |
| Digits | 3,5x4,5 mm |
| Counting direction |
Right or Left |
| Gradient | 1 revolution = 2; 20 |
| Counting speed | Max. 500 numbers/min |
| Measuring area | 0-999,99 m or 0-9999,9 m |
| Resolution | 0,1 m or 0,01 m |
| Zeroing | Reset lever |
| Mounting | Base plate or spring angle |
Zeichnung anfordern ...Zeichnung anfordern ...

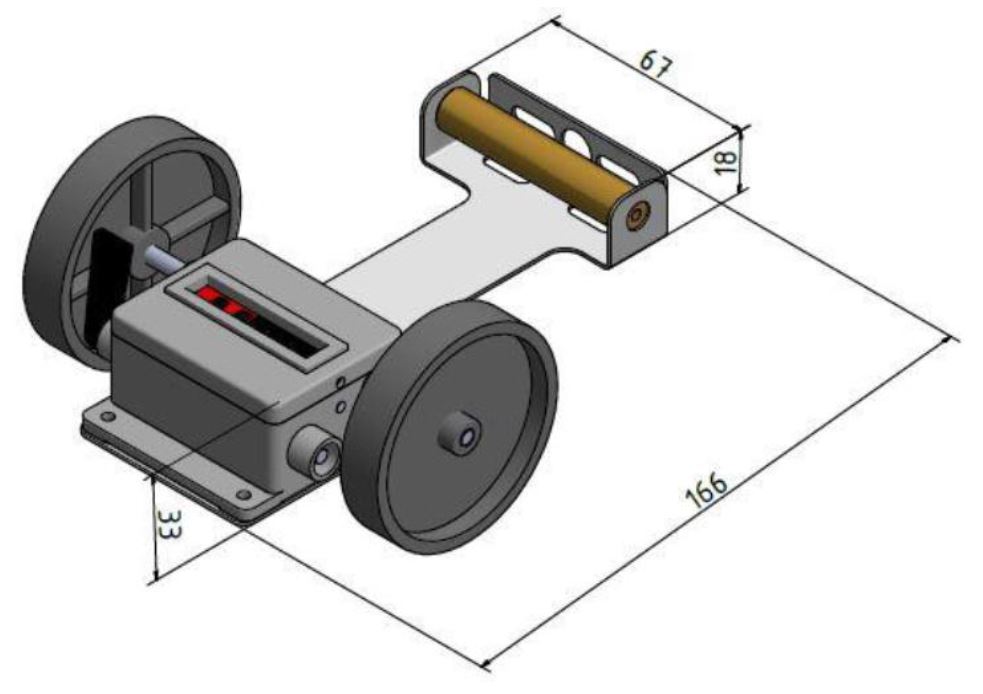

Drawing "Mechanical meter counter M45"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Mechanical meter counter M45"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Mechanical meter counter M45"
CAD files: Please request
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Mechanical meter counter M45"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Mechanical meter counter M45"
