3-axis display WMD3000-M

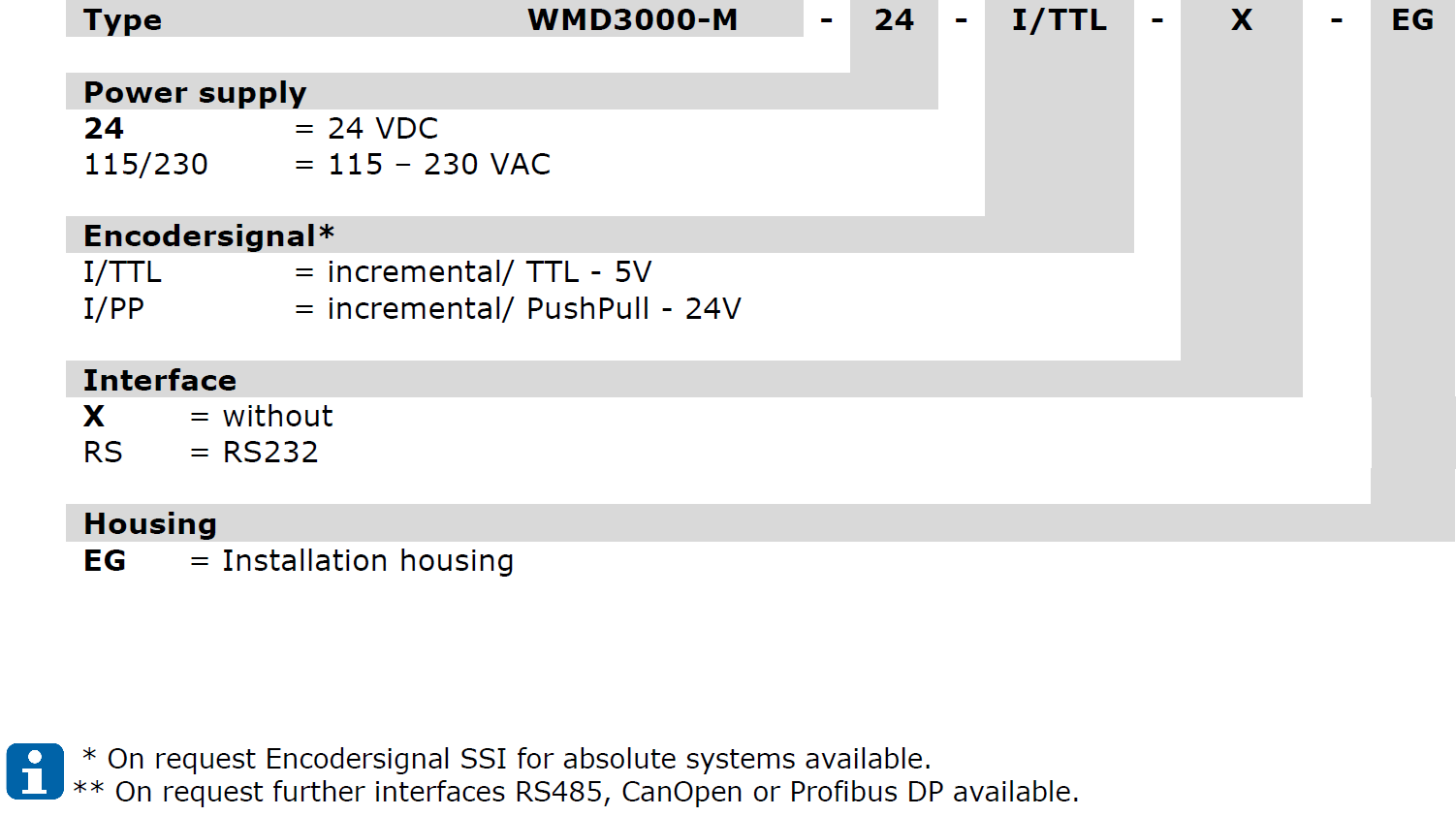

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: WMD3000-M
• Measuring display for up to 3 axes (configurable) with additional I/Os and RS232 interface
• Clear 2.8" TFT full-colour display ensures optimum visibility even in difficult lighting conditions
• Many functions (such as measurement compensation or calculation of values) are already integrated as parameters
• Simple operation through symbols and plain text in the display
• Support of incremental measuring systems (HTL and TTL) or absolute measuring systems via SSI interface
• Symbolism and colour concept can be easily adjusted via parameters
• USB interface for parameter backup, update, import of symbols
Mechanical Data
|
Display |
2,8" TFT full-colour display 4:3 |
|
Interface |
RS232 (optional); USB |
|
Operating temperature |
0 to 50 °C |
|
Storage temperature |
-20 to +65 °C |
|
Humidity |
max. 90 % |
|
Protection rating |
IP54 (front side) bis IP00 (back side) |
|
Dimensions (W x H x D) |
116 x 92 x 60 mm (Installation depth incl. plug) |
Electrical Data
|
Power supply |
24 VDC or 115 – 230 VAC (Note the nameplate) |
|
Current consumption |
90 mA without external load at 24 VDC resp. 20 – 35 mA without external load at 115 – 230 VAC power supply. When using an AC device, make sure that all external loads do not exceed 260 mA (at 230 VAC), or 160 mA (at 115 VAC). |
|
Input signals Input voltage |
4x digital inputs 0 – 5 V active low 10 – 30 V active high |
|
Measuring system Supply voltage
Measuring system 1, 2 and 3 |
3x incremental measuring systems 5 V or 24 V at 24 V 5 V or 12 V at 115 – 230 V BDD power supply
Max. counting frequency: 1 MHz Signals: A; ; B; ; Z; |
|
Output signals |
2x digital outputs (optional) 24 V, 600 mA |
CAD-Files: Please request
