- Order number: V4
V4 is a multifunctional microprocessor display unit with resistance, voltage or... more
Product information "V4 - Digital Display"

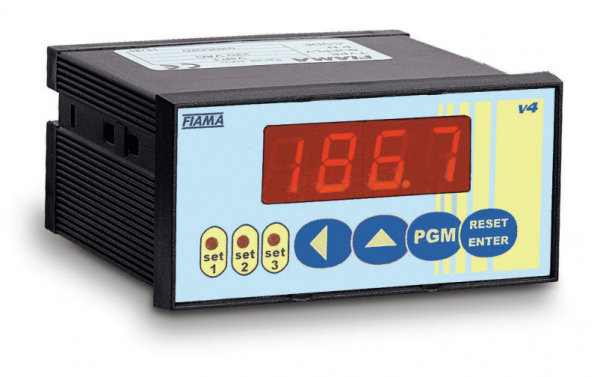

V4 is a multifunctional microprocessor display unit with resistance, voltage or current input for linear and angular measurements.
- Functions: total and relative measurement, Offset, freely programmable
- Measurement monitoring of up to 3 limit contacts values via relays and LEDs
Related links to "V4 - Digital Display"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "V4 - Digital Display"
| Power supply | 115 VAC, 230 VAC, 24 VAC, 15-30 VDC, ±10% |
| Line frequency | 50/60 Hz |
| Absorbed power | 4 VA |
| Resistance input | 1K - 50K Ohm |
| Display | -1.999 +9.999 |
| A/D Converter resolution | 8.000 Points |
| Accuracy | V4P: ±0,025%; V4V-I: ±0,1% full scale |
| V4V-I: Voltage input | 0-10 VDC, -10 +10 VDC |
| V4V-I: Linearity | ±0,025% |
| V4V-I: Thermic stability | 60 ppm/°C max. |
| V4: Analogue output | 4-20 mA, 0-10 VDC, -10 +10 VDC |
| V4: Serial output | RS485 ModBus RTU |
| Operating temperature | 0-50 °C |
| Relative humidity | 30-90% |
| Shock-proof case | DIN 43700 - IP54 |
| Low tension LVD | 2014/35/UE |
| EMC | 2014/30/UE |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "V4 - Digital Display"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "V4 - Digital Display"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "V4 - Digital Display"
CAD-Files: Please request
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "V4 - Digital Display"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "V4 - Digital Display"
