Digital display AP2

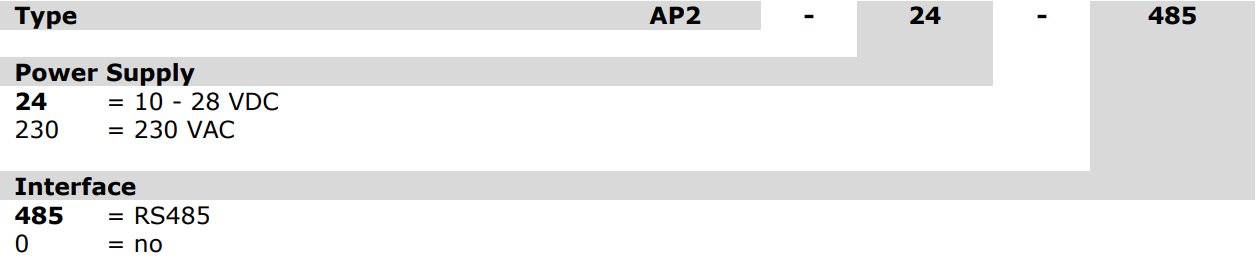

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: AP2
- LED display, 5-digit, height 14 mm
- Power supply 10 - 30 VDC including analog sensor supply
- freely programmable
- 48mm x 96mm x 30mm DIN mounting housing
- 3 variants, input: voltage, current or resistance
- Particularly reliable
- Accessories: Casing, brackets, etc.
Mechanical Data
|
Display |
LED, 6-digits |
|
Digits High |
approx. 14 mm |
|
Dimensions |

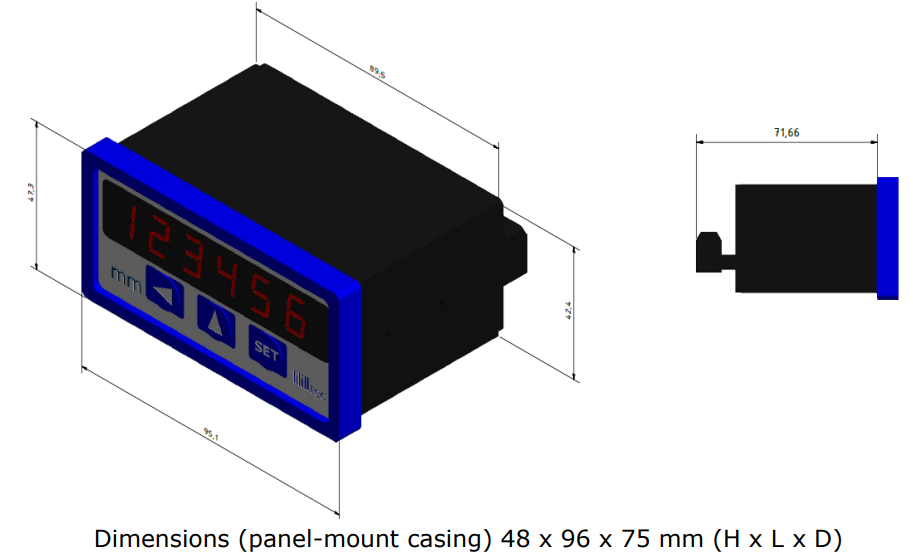

48 x 96 x 75 mm (H x L x D) |
|
Resolution |
up to 15 Bit, Type: Delta-Sigma (approx. 4 measuring/second) |
|
Measuring Range |
-99.999 to +999.999 |
|
Measures Voltage Current Resistance |
0 to 10 V 0 to 20 mA or 4 to 20 mA 1 kΩ to 100 kΩ |
|
0 ... 1 V or 0 ... 5 V, due to the resolution possible. For 4 ... 20 mA is at currents <3.5 mA "I ERROR". (Current) 82 Ω load to ground. |
|
Electrical Data
|
Power Supply analogue encoder power supply |
10 - 30 VDC or 230 VAC (±10%) approx. 24 VDC (max. 100 mA; analogue) |
|
PRESET-value |
configurable |
|
Counting Frequency |
to 100 KHz |
|
Output |
2x transistor output O.C. -> ground switching, max. 30 VDC, max. 100 mA |
|
Input |
ground switching; freezing function |
|
Balance |
TEACH IN |
|
Interface |
RS 485 (optional) |
|
IP-Rating |
IP4x to IP5x, front IP6x seal (optional) |
CAD-Files: Please request
