Hand Wheel Position Indicator I60 - I60F
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: I60-I60F
- Position indicator with analogue scale (I60) or rather torque support (I60F)
- Measurement of length and angle with gravity principle
- Window of shock-proof polycarbonate
- Available for several hand wheels
- IP-Rating: IP64
Mechanical Data
|
In general |
|
|
Material Case Window |
Metal or Technopolymer shock-proof Polycarbonate |
|
Indication |
analogue dial scale |
|
Counting Direction |
DX clockwise SX anti-clockwise |
|
Hand Big Hand Little Hand |
Transmission Ratio depending on the required shaft revolution |
|
Transmission Ratio |
2:1; 4:1; 6:1; 10:1; 12:1; 20:1; 24:1, 30:1; 36:1; 40:1; 60:1; 100:1; 120:1; 200:1 |
|
Dial Scale |
2‑0‑2; 0‑6; 3‑0‑3; 0‑10; 0‑12; 6‑0‑6; 0‑20; 0‑24; 0‑30; 0‑36; 18‑0‑18; 0‑40; 0‑50; 0‑60; 0‑80; 0‑100 |
|
Operating Temperature |
< 80°C |
|
IP-Rating |
IP64 |
|
Optional |
oil-filled on request |
|

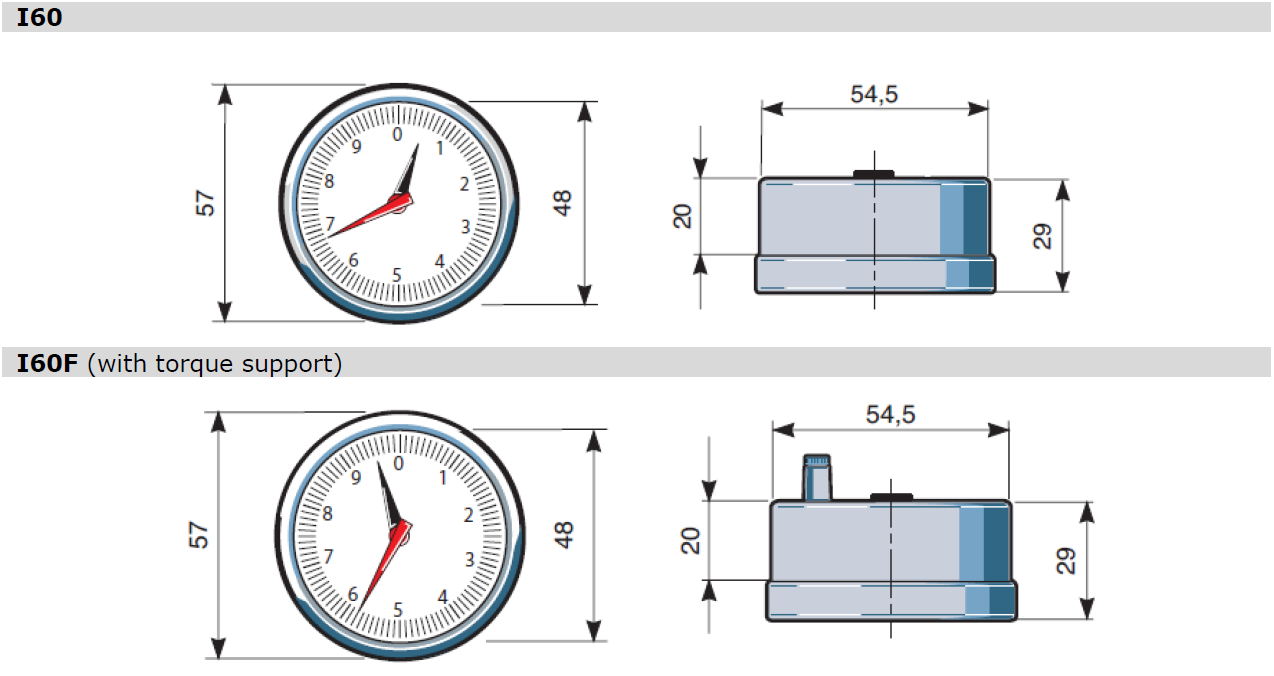

I60 |
|
|
Accessories Hand Wheel |
P70, P100, P100P |
|
Applications |
horizontal or slightly inclined shafts |
|
I60F (with torque support) |
|
|
Accessories Hand Wheel |
P100FP |
|
Applications |
Shafts with any position |
CAD-Files: Please request
