Guided Systems - PS6
| Resolution | 0,001 - 0,1 mm |
| Interface | SSI, TTL |
| Measuring system | Incremental, Absolute, Quasi absolute |
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: PS6
Characteristics:
Guide carriage with mounted sensor... more
Product information "Guided Systems - PS6"
Characteristics:
- Guide carriage with mounted sensor
- custom length
- Resolution up to 0,001 mm
- Reading without contact
- Available as inkremental, absolute and quasi-absolute measuring system
Related links to "Guided Systems - PS6"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Guided Systems - PS6"
Guide carriage
| Measurements | see drawing |
| Length [FL] | 107 mm |
| Material | Aluminum, anodized |
Profile rail
| Measurements | see drawing |
| Material | Aluminum, anodized |
| Operating temperature | -20°C … +80°C |
| Storage temperature | -30°C … +90°C |
Incremental System
| Without Display | LHR5 |
| Measuring System | incremental |
| Interface | 5V - TTL |
| Resolution | 0,1; 0,01; 0,005 |
| Supply Power | 5 VDC |
| Magnetic Tape | PM5 |
| Cable Length | 2, 5, 10 m |
| more on request | |
| Connector | M12; 12-polig |
| Open cable end |
Quasi-absolute System
| With Display | F8P |
| Measuring system | quasi absolute, incremental |
| Design | DA = direct-reading display |
| Resolution | programmable |
| Power Supply | battery supply |
| Magnetband | PM5 |
| Cable length | 2, 5, 10 m |
| more options on request |
Absolute System
| Without Display | AMS2 |
| Measuring System | absolute |
| Interface | 24V - SSI |
| Resolution | 0,1; 0,01; 0,001 |
| Supply Power | 24 VDC |
| Magnetic Tape | MBA2 |
| Cable Length | 2, 5, 10 m |
| more options on request | |
| Connector | M12; 12-polig |
| open cable end |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Guided Systems - PS6"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Guided Systems - PS6"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Guided Systems - PS6"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

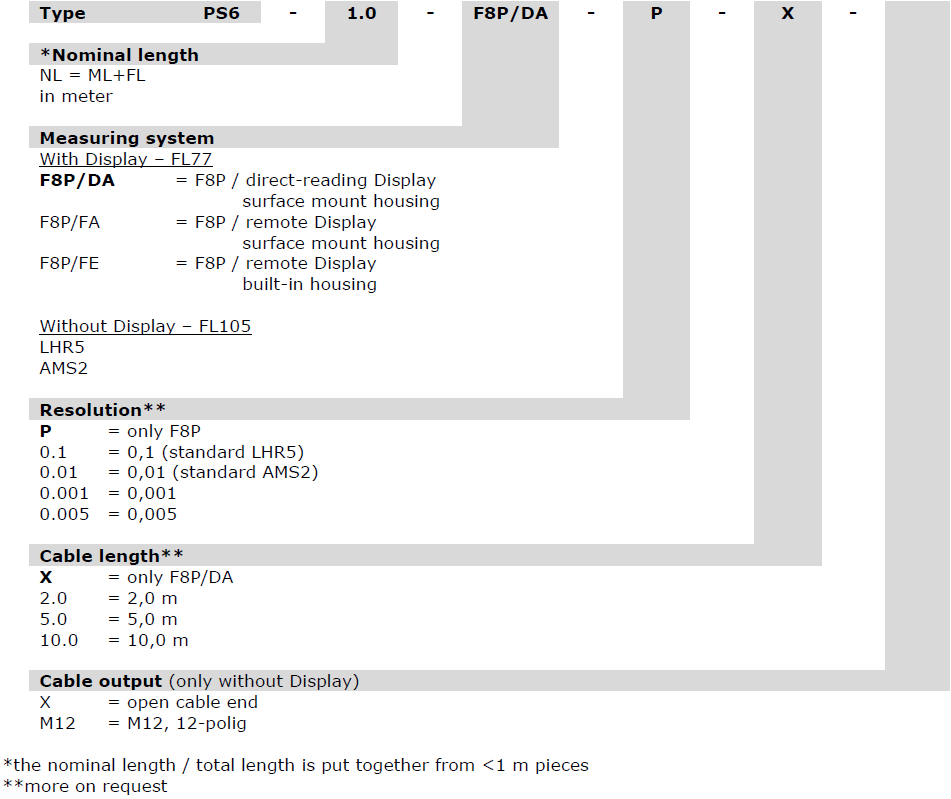

Ordercode "Guided Systems - PS6"
