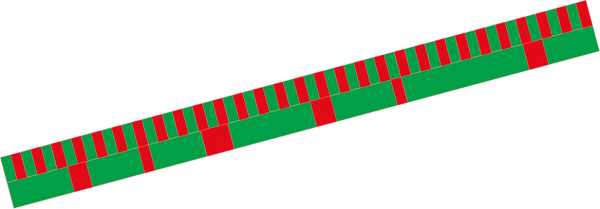

Magnetic scale M02A

Magnetic scale M02A



Measuring Procedure absolute
Measuring Length up to 48 m
Pole Pitch 2 mm
Accuracy up to ±20 µm
Reference Point not necessary



Zum Konfigurieren dieses Artikels benutzen Sie bitte das Datenblatt:

  • M02AS
Absolute magnetic scale with 2mm pole pitch   Characteristics:  ... more
Product information "Magnetic scale M02A"
Absolute magnetic scale with 2mm pole pitch

Characteristics:

Insensitive to dust, humidity, oil and chipping
Operates wear-free with the magnetic sensor
Cost-effective solution
Variable length
Easy to fix with double-sided adhesive tape
Suitable for absolute sensor AHP2L and AHP2- DQ (Drive-CliQ)


Related links to "Magnetic scale M02A"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Magnetic scale M02A"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Magnetic scale M02A"



CAD-Files: Please request.
