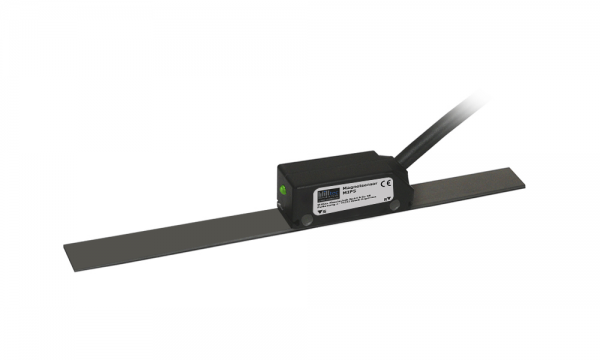

Magnetic sensor MIP5

Magnetic sensor MIP5

Pole Pitch 5 mm
Resolution 500, 100, 50, 10, 5, 1, 0.5 µm
Accuracy ± 15 µm
Measuring length depending on magnetic tape
Interface Line Driver, Push-Pull


Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:

Any questions?

Christian_Willmann

Your Contact

Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17




Download brochure

  • MIP5
Characteristics: Magnetic sensor for linear and angular contactless reading Very small... more
Product information "Magnetic sensor MIP5"
Characteristics:
  • Magnetic sensor for linear and angular contactless reading
  • Very small size 36 x 11 x 13,5 mm to allow installation in narrow spaces
  • Housing made of die-cast metallic material
  • Resolutions up to 0.5 μm
  • Status indication through LED RGBW
  • Flexible cable for axial or radial connection
  • Easy and fast mounting of the entire measuring system, with wide alignment tolerances
  • Distance sensor/magnetic scale up to 0.3 mm
  • Speed up to 47 m/s
  • IP-Rating IP67
  • Option: cleaning wipers to remove dirt deposits from the magnetic scale
Related links to "Magnetic sensor MIP5"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Magnetic sensor MIP5"

Technical data

Pole pitch

5+5 mm

Reference indexes

C = constant step (every 10 mm)

R = positioned on the magnetic scale

Resolution [µm]

500

100

50

10

5

1

0.5

Accuracy grade

± 15 μm 1)

Interpolation error (SDE)

± 3.5 μm 2)

Unidirectional repeatability

± 1 μm 2)

Hysteresis

4 μm 2)

A, B and I0 output signals

Line Driver / Push-Pull

Vibration resistance (EN 60068-2-6)

300 m/s2 [55 … 2000 Hz]

Shock resistance (EN 60068-2-27)

1000 m/s2 [11 ms]

Protection class (EN 60529)

IP 67

Operating temperature

-20 °C … 75 °C

Storage temperature

-40 °C … 80 °C

Relative humidity

100%

Power supply

5 to 24 VDC ±10% 3)

Current consumption without load

40 mAMAX

Current consumption with load

100 mAMAX (with 5 V and R = 120 Ω)

80 mAMAX (with 24 V and R = 1.2 kΩ)

Electrical connections

8-wire connecting cable, open cable end (standard)

M12-connector (plug); 8-pin (optional)

Other connections on request

Electrical protections

inversion of polarity and short circuits

Weight

20 g

1)     The declared accuracy grade of ± X μm is referred to a measuring length of 1 m.

2)     The error declared is subject to the respect of the alignment tolerances.

3)     Voltages higher than 27 VDC will damage the sensor.
