Encoder Ex-Proof EXAG-H-ProfiNet - absolute

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:

Any questions?

Christian_Willmann

Your Contact

Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17




Download brochure

  • EXAG-H-Profinet
Hollow Shaft Encoder – Ø78 mm Hollow Shaft: Ø14 mm, Ø16 mm and 1 inch Profinet... more
Product information "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
  • Hollow Shaft Encoder – Ø78 mm
  • Hollow Shaft: Ø14 mm, Ø16 mm and 1 inch
  • Profinet
  • Resolution up to 30 bits
  • Removable End Cap for on-site modification
  • ATEX, IECEx, EAC Ex and North America Class I Div. 2, Ex db IIC
Related links to "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"



Electrical Specifications

Code:  Absolute - Binary
Interface: Profinet
Profidrive Profile 4.x, Encoder Profile 4.x
Resolution:  Max. 14 bit (16384) revolutions
Max. 16 bit (65536) steps per rev.
Device Addressing:  Programmable IP address and Network parameters
Transmission Rate:  10/100 Mbit
Supply Voltage:  10 to 30 Vdc
Current Consumption: Max. 230 mA with 10 Vdc
Max. 100 mA with 24 Vdc
Power Consumption:  Max. 2.5 watts
Accuracy of Division:  ±0.0220° (14-16 bit),
±0.0439° (≤13 bit)
Electrical Lifetime:  > 10⁵ hours
Electrical Protection:  Reverse polarity and over-voltage-peak protection
Noise Immunity:  EN61000-6-2
Emitted Interference:  EN 61000-6-4



Mechanical Specifications

Material: Housing: Aluminum or Stainless Steel
Cap: Aluminum or Stainless Steel
Shaft: Stainless Steel
Weight:  Aluminum: ~ 1600 gr (56,44 oz)
Stainless Steel: ~ 3100 gr (109,35 oz)
Bearing Life:  > 1.9 x 10¹⁰ revolutions at rated load
Shaft Speed:  6.000 rpm (max.) IP 64
3.000 rpm (max.) IP 65/66/67/68
Starting Torque:  ≤ 0,01 Nm at 25° C (no seal)
≤ 0,03 Nm at 25° C (with seal)
Mass Moment of Inertia:  42 gcm² (5,95 x 10⁻⁴ oz-in-sec²)
Shaft Loads:  Axial: 60 N (13,50 lbs) max.
Radial: 80 N (17,98 lbs) max.



Environmental Specifications

Operating Temp.:  -40° to +70° C
Storage Temp.:  -40° to +70° C
Shock:  100 G / 11 ms
Vibration:  10-2000 Hz / 10 G
Bump:  10 G / 16 ms (1000 x 3 axis)
Humidity:  98 % RH without condensation
Enclosure Rating: IP 64 / Nema 4 (approx.)
IP 65 / Nema 5 (approx.)
IP 66 / Nema 6 (approx.)
IP 67 / Nema 6 (approx.)
IP 68 (1hour/1 meter) / Nema 6P (approx.)



Certificates

ATEX: Certificate No.: ITS09ATEX16867X II 2 G Ex db IIC T5 Gb II 2 D Ex tb IIIC T100°C
Db -40°C≤ Ta≤ +70°C
IECEx: Certificate No.: IECEx ITS 10.0016X Ex db IIC T5 Gb, Ex tb IIIC T100°C Db -40°C
≤ Ta≤ +70°C
North America: Certificate No: LR1192-5 Class I Division 2 Groups ABCD T5, Class II
Division 2 Groups FG, Class I Zone 1AEx db IIC T5 Gb, Ex db IIC T5 Gb, Zone 21 AEx tb IIIC
T100˚C Db, Ex tb IIIC T100˚C Db, Tamb= -40 ˚C to +70 ˚C
EAC Ex: НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19 1Ex db IIC T5 Gb X,
Ex tb IIIC T100°C Db X -40°C<T.amb<+70°C





Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

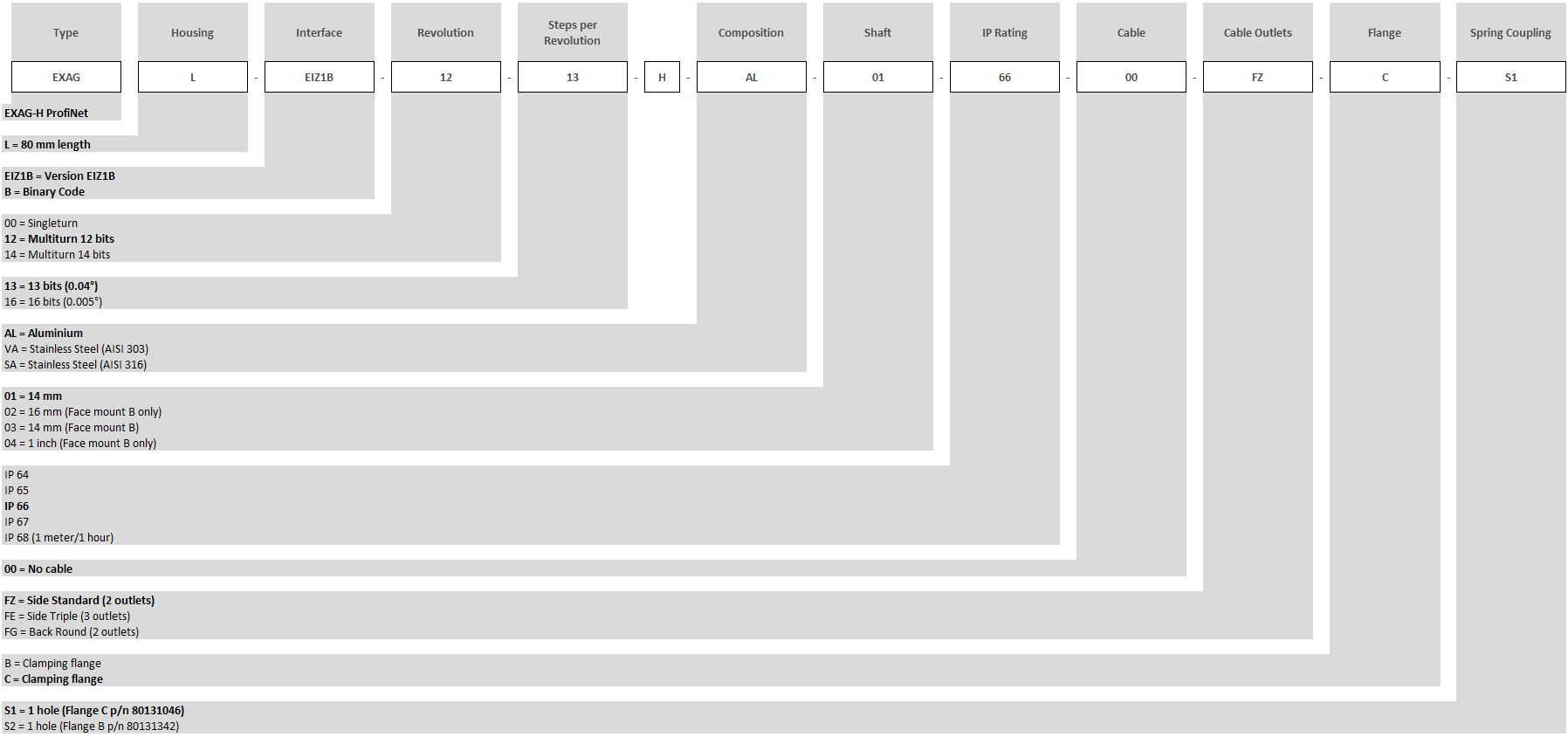

Ordercode "Encoder Ex-Proof EXAG-H-ProfiNet - absolute"
