Drehgeber Mini SCA30AB-SSI - absolut

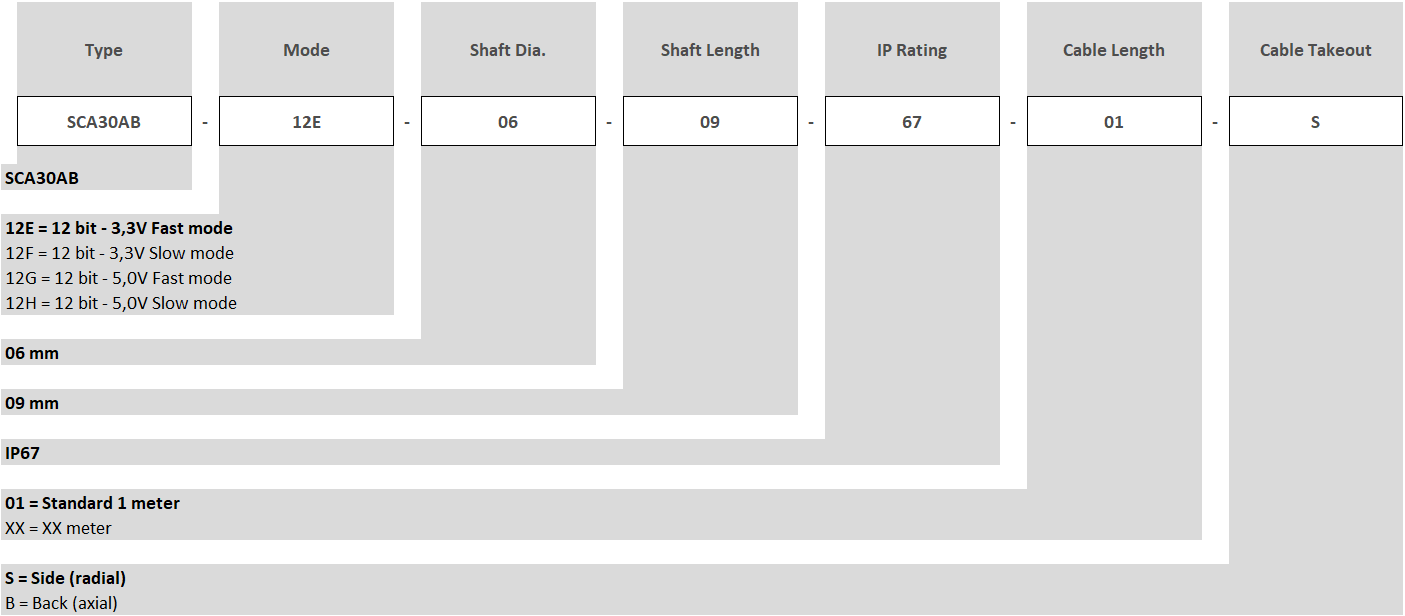

Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCA30AB-SSI
Drehgeber Mini SCA30AB-SSI - absolut mit Vollwelle.
• Ø 30 mm... more
Product information "Drehgeber Mini SCA30AB-SSI - absolut"
Drehgeber Mini SCA30AB-SSI - absolut mit Vollwelle.
• Ø 30 mm
• Vollwelle Ø 3mm bis Ø 1/4 inch
• Singleturn
• SSI Schnittstelle
• Wählbare Zählrichtung
• Singleturn Auflösung: 12 Bit / Umdrehung
• Multiturn bis zu 37 Bit
• Voreinstellbare Nullposition
• IP67
Related links to "Drehgeber Mini SCA30AB-SSI - absolut"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Drehgeber Mini SCA30AB-SSI - absolut"
Electrical Specifications
| Encoder Type: | Absolute Magnetic Singleturn |
| Interface type: | SSI |
| Resolution: | 12 bit |
| Supply Voltage: | 5 V and 3,3 V |
| Supply Current: | 25 mA typical |
| In/Output Standard: | Single ended |
| Mode: | 12 Bit (Slow mode) 12 Bit (Fast mode) |
| Update Time: | 384 μs 96 μs |
| Accuracy: | +/- 0,3 ° |
| Noise Immunity: | Tested to EN61000-6-2 : 2005 (industrial environments) Electromagnetic compatibility (EMC) and EN 61000-6-3 : 2007 (residential, commercial, and lightindustrial environments) for Electromagnetic compatibility (EMC) |
Mechanical Specifications
| Material: | Housing: Stainless steel Cap: Aluminum Hollow Shaft: Stainless steel |
| Weight: | Encoder: ~ 55 gr (1,94 oz) Cable: 50 gr / meter (1,76 oz / meter) |
| Bearing Life: | > 1,9 x 10¹⁰ revolutions at rated load |
| Shaft Speed: | 10.000 rpm (max.) |
| Starting Torque: | < 0,005 Nm (0,708 oz-in) at 25° C |
| Mass Moment of Inertia: | 0,6 gcm² ( 8,5 x 10⁻⁶ oz-in-sec²) |
| Shaft Loads: | Axial: 20 N (4,5 lbs) max. Radial: 20 N (4,5lbs) max. |
Environmental Specifications
| Operating Temp.: | -40° to +100° C |
| Storage Temp.: | -40° to +100° C |
| Shock: | 10 G / 11 ms |
| Vibration: | 10-2000 Hz / 10 G |
| Bump: | 10 G / 16 ms (1000 x 3 axis) |
| Humidity: | 98 % RH without condensation |
| Enclosure Rating: | IP 64 / Nema 4 (approx.) IP 50 / Nema 5 (approx.) - flat cable |
Connection Options
| Cable: | 5 leads (0,14 mm², 26 AWG) |
| Flat Cable: | 10 lead flat cable with IDC connector |
