Mini encoder SCH24AV - Absolute
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCH24AV
Mini Encoder with shaft
Characteristics:
Encoder: Ø24 mm... more
Product information "Mini encoder SCH24AV - Absolute"
Mini Encoder with shaft
Characteristics:
- Encoder: Ø24 mm
- Strong construction with 2 precision ball bearings, for industrial environments
- Supply Range: 5V &plusm; 10% or 3,3V &plusm; 10%
- With a direct Connection to PLCs, there is a low current consumption.
- IP-Rating: IP64
- Magnetic resistance with SMD-Technology
Related links to "Mini encoder SCH24AV - Absolute"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Mini encoder SCH24AV - Absolute"
Electrical Specifications
| Encoder Type: | Absolute Magnetic Singleturn |
| Resolution: | 2¹⁰ (1024) points per revolution |
| Supply Voltage: | 15 Vdc min. to 30 Vdc max. |
| Typical Current Consumption: | 25 mA |
| Output Voltage: | 0 – 5 V or 0 – 10 V |
| Accuracy: | +/- 0,3% of full scale *) |
| Output Format: | Full range output over one revolution (360°) or over one half revolution (180°) |
| Output Update Rate: | 2610 updates/sec. ~ 383μsec. Per update |
| Electrical Protection: | Reverse polarity and output short circuit protected |
| Noise Immunity: | Tested to EN61000-6-2 : 2005 (industrial environments) Electromagnetic compatibility (EMC) and EN 61000-6-3 : 2007 (residential, commercial, and lightindustrial environments) for Electromagnetic compatibility (EMC) |
Mechanical Specifications
| Material: | Housing: Brass Cap: Electroplated Steel Shaft: Brass |
| Weight: | Encoder: ~ 50 gr (1,76 oz) Cable: 50 gr / meter (1,76 oz / meter) |
| Bearing Life: | > 1,9 x 10¹⁰ revolutions at rated load |
| Shaft Speed: | 12.000 rpm (max.) |
| Starting Torque: | < 0,005 Nm (0,708 oz-in) at 25° C |
| Mass Moment of Inertia: | 1,46 gcm² (2,07 x 10⁻⁵ oz-in-sec²) |
| Shaft Loads: | Axial: 20 N (4,5 lbs) max. Radial: 20 N (4,5 lbs) max. |
Environmental Specifications
| Operating Temp.: | -40° to +85° C |
| Storage Temp.: | -40° to +85° C |
| Shock: | 100 G / 11 ms |
| Vibration: | 10-2000 Hz / 10 G |
| Bump: | 10 G / 16 ms (1000 x 3 axis) |
| Humidity: | 98 % RH without condensation |
| Enclosure Rating: | IP 64 / Nema 4 (approx.) |
Connection Options
| Cable: | 4 leads (0,14 mm², 26 AWG) - Standard twisted pairs; shielded |
Zeichnung anfordern ...Zeichnung anfordern ...
Drawing "Mini encoder SCH24AV - Absolute"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Mini encoder SCH24AV - Absolute"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Mini encoder SCH24AV - Absolute"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...

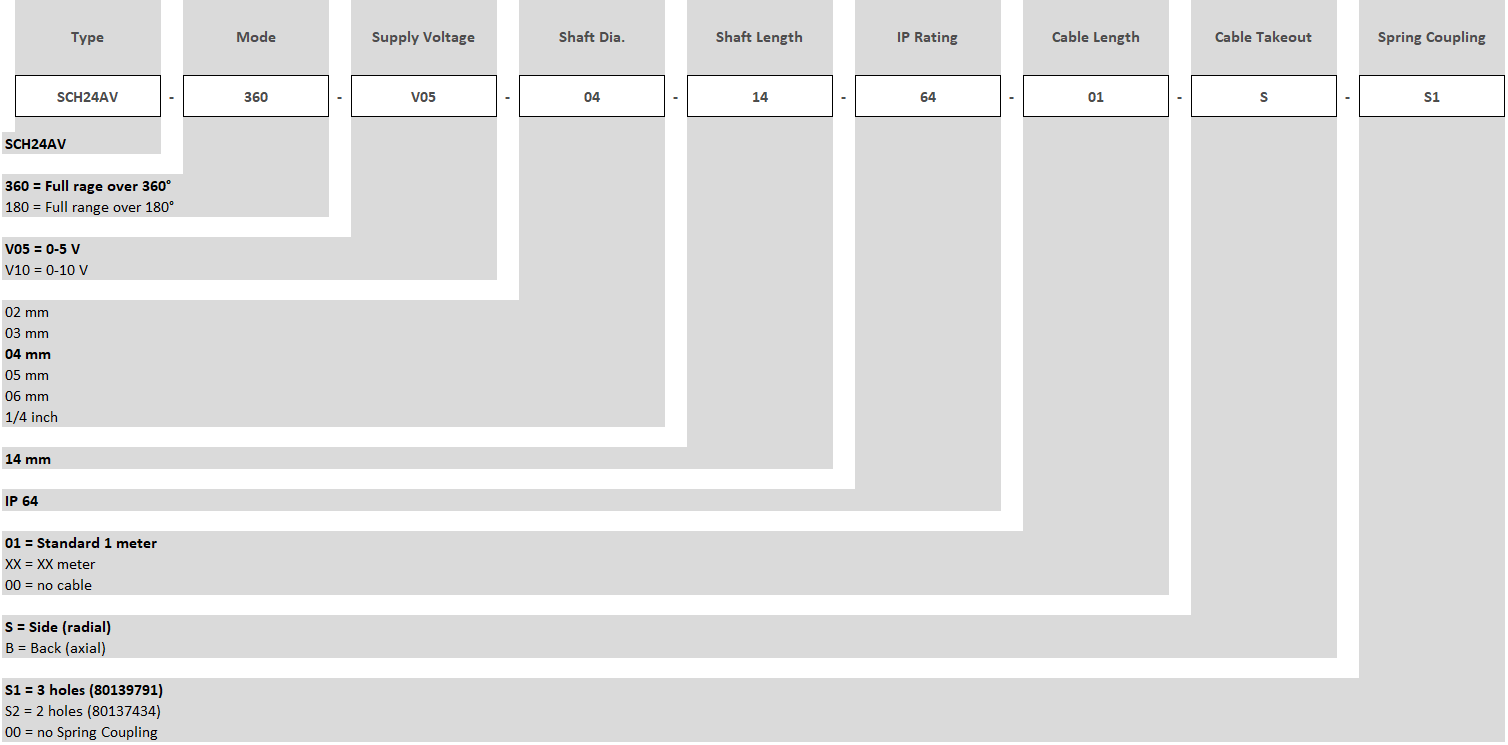

Ordercode "Mini encoder SCH24AV - Absolute"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Mini encoder SCH24AV - Absolute"
