Incremental Encoder SCA24EX
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCA24EX
EX-Proof encoder with shaft
Characteristics:
Encoder:... more
Product information "Incremental Encoder SCA24EX"
EX-Proof encoder with shaft
Characteristics:
- Encoder: Ø 24mm
- Shaft: Ø4 mm - 6 mm
- ATEX , IECEx certified and North America Class I and Class II
- "seawater-proof" - 22 micron anodization
- IP67 / IP64, IP65, IP66 (optional)
Related links to "Incremental Encoder SCA24EX"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Incremental Encoder SCA24EX"
Electrical Specifications
| Code | Incremental |
| Resolution | 1 to 3.600 ppr (pulses per revolution) |
| Supply Voltage | 5 Vdc min. to 24 Vdc max. ** (35 mA max. - no load) |
| Output Voltage | Low: 500 mV max. at 10 mA High (Vin - 0.6) at -10 mA (Vin - 1.3) at -25 mA |
| Output Current | 20 mA max. load ** per output channel |
| Frequency Response | 200 kHz max. ** |
| Output Format | Two channel (A,B) quadrature with Index (Z) and optional complementary (A-, B-, Z-) outputs |
| Phase Sense | A leads B clockwise (CW) from the mounting end of the encoder |
| Index | rotation detector puls (Reed contact) |
| Accuracy | +/- 0.8 arc-min |
| Outputs | ASIC Push-pull and Differential |
| Electrical Protection | Reverse polarity and output short circuit protected |
| Noise Immunity | Tested to EN61000-6-2:2005 (industrial environments) Electromagentic compability (EMC) and EN61000-6-3:2007 (residential, commercial, and light-industrial environments) for Electrmagentic compability (EMC) |
Mechanical Specifications
| Material | Housing: Aluminium Cap: Aluminium Shaft: AISI 303 |
| Weight | Encoder: Approx. 80 gr (44.1 oz) Cable: 50 gr / meter (1.76 oz / meter) |
| Bearing Life | > 1.9 x 1010 revolutions at rated load |
| Shaft Speed | 3.000 rpm continues (max.) IP67 |
| Starting Torque | < 0.1 Nm (14.16 oz-in) at 25°C |
| Mass Moment of Inertia | 0.2 gcm2 (2.8 x 10-6 oz-in-sec2) |
| Shaft Loads | Axial: 10 N (2.25 lbs) max. Radial: 10 N (2.25 lbs) max. |
Environmental Specifications
| Operating Temperature | -40° to +70°C |
| Storage Temperature | -40° to +85°C |
| Shock | 100 G / 11 ms |
| Vibration | 10-2.000 Hz /10 G |
| Bump | 10 G / 16 ms (1.000 x 3 axis) |
| Humidity | 98% RH without condensation |
| Enclosure Rating | IP64 / Nema 4 (approx.) - option IP65 / Nema 4 (approx.) - option IP66 / Nema 6 (approx.) - option IP67 / Nema 6 (approx.) |
Connection Options
| Cable | 8 leads (0.05 mm2, 30 AWG) twisted pairs; shielded |
| Cable Glands | - |
| Terminal Block (removable end cap) |
- |
Certifications
| ATEX | Certificate No.: CML 19ATEX1098X II 2 GD Ex db IIC T5 Gb and Ex tb IIIC T100°C Db -40°C ≤ Tamb ≤ +70°C |
| IECEx | Certificate No.: IECEx QPS 19.0021X Ex db IIC T5 Gb and Ex tb IIIC T100°C Db -40C ≤ Tamb ≤ +70C |
| North America | Certificate No. LR 1192 24VDC, Max. 100 mA Class I, Div 2, Groups ABCD T5, Class II, Div 1, Groups EFG, Ex db IIC T5 Gb, Class I, Zone 1, AEx db IIC T5 Gb |
| EAC Ex | НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19 1Ex db IIC T5 Gb X, Ex tb IIIC T100°C Db X, -40°C<T.amb<+70°C |
** = It is recommended user, not to combine max. values for all 3 paramteres
Zeichnung anfordern ...Zeichnung anfordern ...

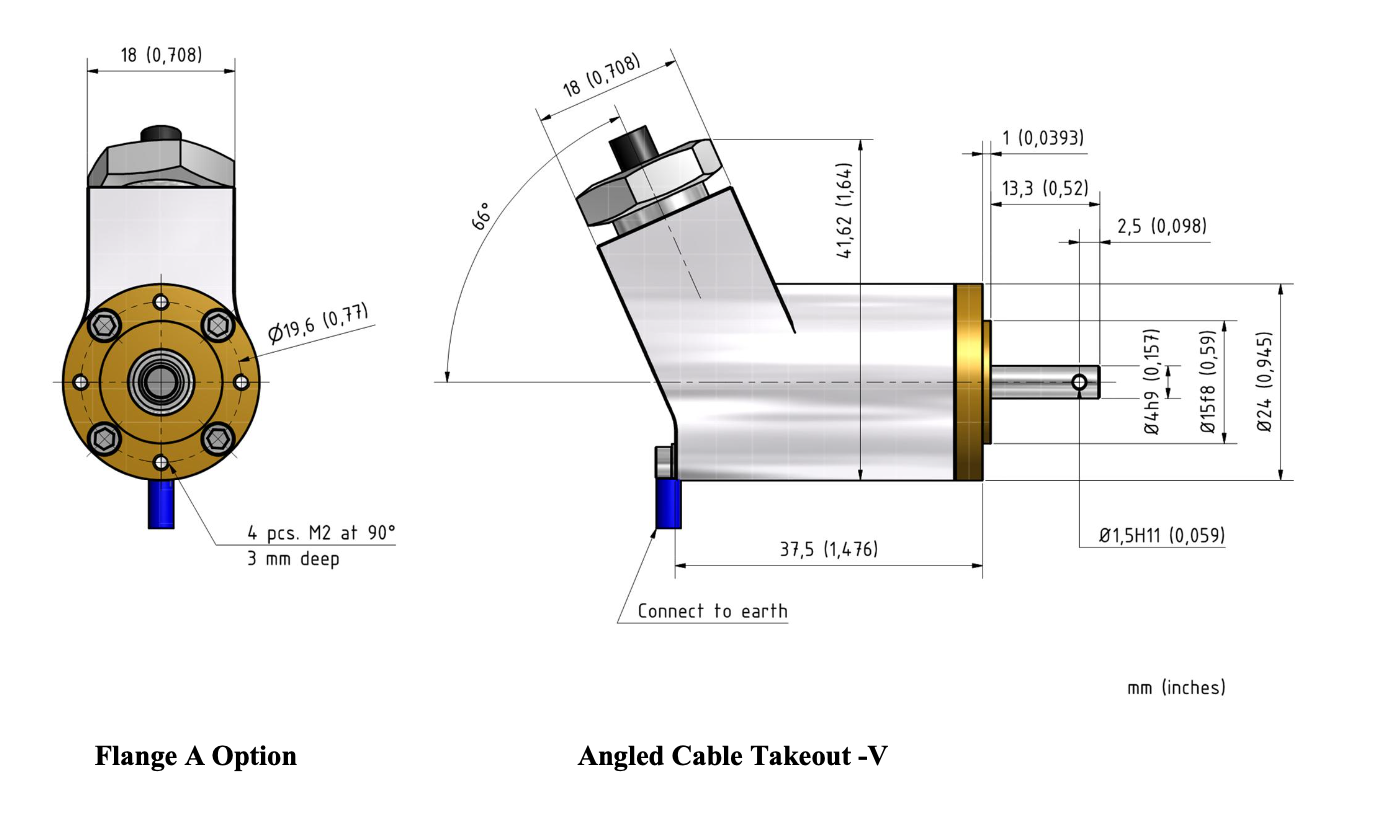

Drawing "Incremental Encoder SCA24EX"
Datenblatt anfordern ...Datenblatt anfordern ...
Get Datasheet files for "Incremental Encoder SCA24EX"
CAD Daten anfordern ...CAD Daten anfordern ...
Get CAD files for "Incremental Encoder SCA24EX"
CAD-Files: Please request.
Bestellschlüssel anfordern ...Bestellschlüssel anfordern ...
Ordercode "Incremental Encoder SCA24EX"
Passendes ZubehörPassendes Zubehör anfragen ...
Accessories "Incremental Encoder SCA24EX"
