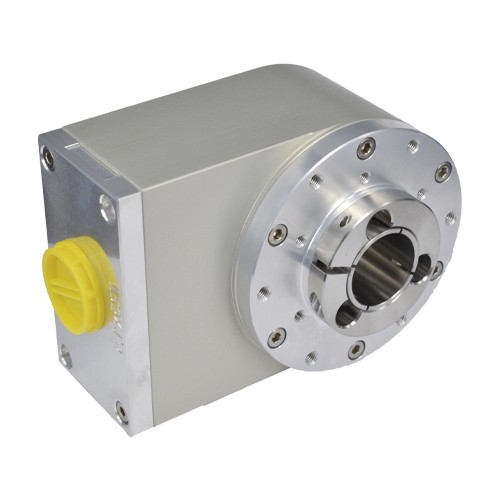

Encoder - Incremental SCH86FEX
Zum Konfigurieren dieses Artikels benutzen Sie bitte den Bestellschlüssel:
Any questions?
Your Contact
Christian Willmann
c.willmann@willtec.de
+49 (0)7665 - 93465-17
Download brochure
- Order number: SCH86FEX
Characteristics:
EX-Proof / Stainless Steel Encoder with hollow shaft... more
Product information "Encoder - Incremental SCH86FEX"
Characteristics:
- EX-Proof / Stainless Steel Encoder with hollow shaft
- Encoder: Ø 86mm
- Shaft: Ø 5/8 inch - Ø 1 inch
- IP65 (IP66, IP67 option)
- ATEX, IECEx, ECA Ex certified
Related links to "Encoder - Incremental SCH86FEX"
Technische Daten anfordern ...Technische Daten anfordern ...
Technical data "Encoder - Incremental SCH86FEX"
Electrical Specifications
| Code | Incremental |
| Resolution | 1 to 4.096 ppr (pulses per revolution) |
| Supply Voltage | 4.5 Vdc min. to 30 Vdc max. ** (35 mA max. - no load) |
| Output Voltage | Low: 500 mV max. at 10 mA High (Vin - 0.6) at -10 mA (Vin - 1.3) at -25 mA |
| Output Current | 35 mA max. no load per output channel ** |
| Frequency Response | 300 kHz max. ** Output MW 70 kHz max. |
| Output Format | Two channel (A,B) quadrature with Index (Z) and optional complementary (A-, B-, Z-) |
| Phase Sense | A leads B clockwise (CW) from mounting end of the encoder |
| Index | Gated with Channels A and B high Output MW gated with channel A |
| Accuracy | +/- 0.8 arc-min. |
| Outputs | ASIC Push-pull and Differential OL7272 Differential Line Driver 26C31 Differential Line Driver 5 V output (with 5V input) iC-DL Differential Line Driver |
| Electrical Protection | Outputs short circuit protected Reverse polarity protected (ASIC and MP (OL7272) outputs only) Miswiring protected (MW output only) |
| Noise Immunity | Tested to EN61000-6-2 : 2005 (industrial environments) and EN 61000-6-3 : 2007 (residential, commercial, and light-industrial environments) |
Mechanical Specifications
| Material | Housing: Aluminium or AISI 316 Cap: Aluminium or AISI 316 Hollow Shaft: AISI 316 SS |
| Weight | Aluminum: ~ 1.250 gr. (2.76 lb.) AISI 316: ~ 3.750 gr. (8.27 lb.) Cable: 50 gr / meter (1.76 oz / meter) |
| Bearing Life | > 1.9 x 1010 revolutions at rated load |
| Shaft Speed | 3,000 rpm continuous (max.) |
| Starting Torque | < 0.05 Nm (7.08 oz-in) at 25°c IP65 < 0.1 Nm (14.16 oz-in) at 25°C IP67 |
| Mass Moment of Inertia | 550 - 600 gcm2 (7.8 x 10-3 - 8.5 x 10-3 oz-in-sec2) |
| Shaft Loads | Axial: 50 N (11.25 lbs) max. recommended Radial: 100 N (22.50 lbs) max. recommended |
Environmental Specifications
| Operating Temperature | -40° to +70°C |
| Storage Temperature | -40° to +85°C |
| Shock | 100 G / 11 ms |
| Vibration | 10-2.000 Hz /10 G |
| Bump | 10 G / 16 ms (1.000 x 3 axis) |
| Humidity | 98% RH without condensation |
| Enclosure Rating | IP65 / Nema 4 (approx.) IP66 / Nema 6 (approx.) - option IP67 / Nema 6 (approx.) - option |
Connection Options
| Cable | 8 leads (0.14 mm2, 26 AWG) twisted pairs; shielded; halogen free |
| Cable Glands | 9-position terminal block (inside cap) M20 cable gland entry M25 cable gland entry |
| Terminal Block (removable end cap) |
- |
Certifications
| ATEX | Certificate No.: ITS 09 ATEX 168416X II2GExd IICT5GbandII2DExtDIIICT100°C Tamb-40°Cto+70°C |
| IECEx | Certificate No.: ITS13.0025X Ex d IIC T5 Gb and Ex tb IIIC T100°C Db Tamb -40°C to +70°C |
| North America | Certificate No: LR1192-4R2 Class I, Division 2, Groups ABCD T5 Class II, Division 2, Groups FG Ex d IIC T5 Gb Class I, Zone 1, AEx d IIC T5 Gb TAmb= -40 ̊C to +70 ̊C V= 4.5 – 30 Vdc; Imax= 100 mA |
| EAC Ex | НАНИО «ЦСВЭ» No. ЕАЭС RU C-DK.AA87.B.00266/19 1Ex db IIC T5 Gb X, Ex tb IIIC T100°C Db X -40°C<T.amb<+70°C |
** = It is recommended user, not to combine max. values for all 3 paramteres
